ADSS LTANS Evidence Server

Archive Authority for Long-term Data Preservation

Proving existence, integrity and validity for the long-term

As part of complying with internal policies, external regulation or legislative requirements, certain business documents must be securely archived for a number of years into the future.

ADSS LTANS Evidence Server is a PKI-based Archive Authority product, which provides the capability to be able to demonstrate the (time of) existence, integrity, and validity of data including signed and/or encrypted data for long or undetermined periods of time. Because cryptograph algorithms may become weak over a period of time, the ADSS LTANS Evidence Server supports the ability to refresh the evidence records using new algorithms and updated PKI certificates.

ADSS LTANS Evidence Server offers these capabilities for any document format including PDF, Office and proprietary formats. So whether the document type is legal, financial, personnel, safety, engineering drawings or project plans, they all can be evidence archived. The business application simply needs to decide which documents need to be evidenced and under which archive policy. Note the actual data object maybe stored/archived in a 3rd party DMS, ECM or Archive system, in this case ADSS LTANS Evidence Server only stores the evidence record for the data object.

FEATURES & BENEFITS

Optional signature verification

As part of the archive process ADSS LTAN Evidence Server can optionally verify any pre-existing signatures (PAdES, CAdES, XAdES) prior to archiving and provide detailed OASIS DSS-X verification reports including PEPPOL signature quality ratings.

Optional notary signing

As part of the archive process ADSS LTANS Evidence Server can optionally notarise and sign the archive object to attest to the processing of the data. Long-term signatures are likely to be applied in a format that suits the ERS structure.

Data storage flexibility

ADSS LTANS Evidence Server can either store Archive Data Objects and ERS Data within its own database or it can return Archive Meta Data and ERS Data to the calling business application for local storage. It can also store the archive object on a local file system or publish to an online URL.

Key Points

Protects documents through the entire archive period using secure timestamps (RFC 3161). The input data can be of any format and can be signed or encrypted
Supports multiple archive profiles for different business requirements or document types
Offers flexible retention policies, including the option of auto-deleting archive documents at the end of their retention period

Key Points

Protects documents through the entire archive period using secure timestamps (RFC 3161). The input data can be of any format and can be signed or encrypted
Supports multiple archive profiles for different business requirements or document types
Offers flexible retention policies, including the option of auto-deleting archive documents at the end of their retention period

How it works?

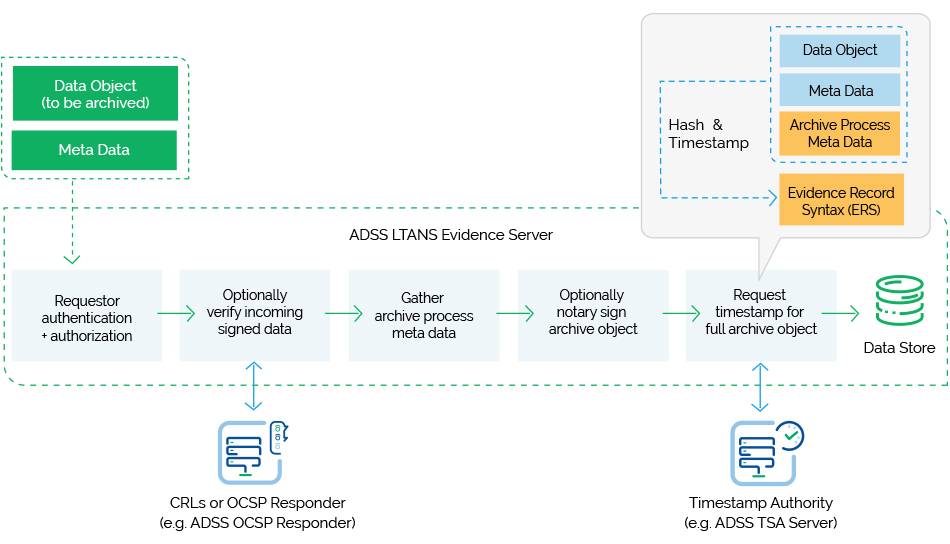

The following diagram illustrates the internal processes and how the Evidence Record Syntax (ERS) datafile is created:

ADSS LTANS SERVICE DEMOS

Archiving Demos

This demo uses ADSS LTANS Service which provides long-term archiving and notary services. It facilitates the long-term secure archiving of corporate documents, emails and data using digital signature and timestamp technologies.

USE CASE

IETF LTANS Compliant Archive Authority for Long-term Data Integrity Protection

Long-term archive your documents/transactions by sending LTANS request to ADSS Archive Server
Any type of document (PDFs, Word, Excel, Proprietary Format, Encrypted Documents etc.)
Archive Object (timestamped using IETF Evidence Record Syntax). Note the Archive object can be stored locally by ADSS LTANS Evidence Server in its database or returned to the business application (e.g. a Document Management System)
